Two-wheel drive direct-connected gasoline and diesel micro-tiller

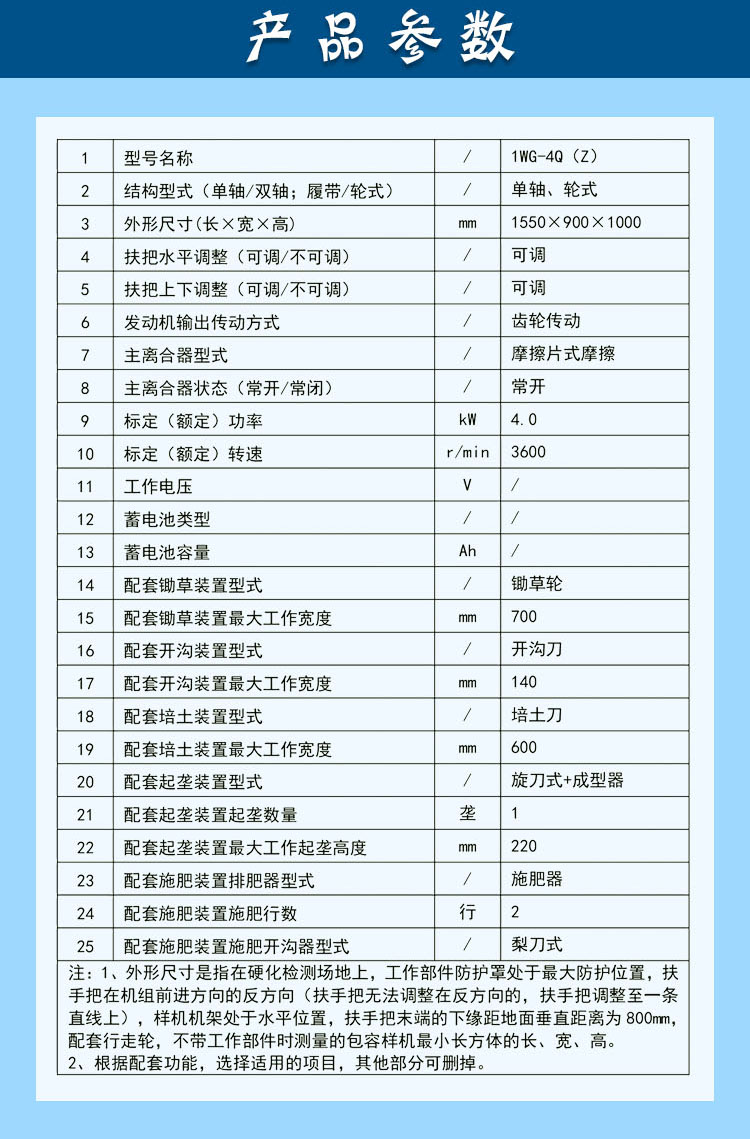

Item	Unit	Parameter
Model Name	/	1WG‑4Q (Z)
Structure Type (Single‑shaft / Double‑shaft; Track‑type / Wheel‑type)	/	Single‑shaft, Wheel‑type
Overall Dimensions (L×W×H)	mm	1550×900×1000
Handle Horizontal Adjustment (Adjustable / Non‑adjustable)	/	Adjustable
Handle Vertical Adjustment (Adjustable / Non‑adjustable)	/	Adjustable
Engine Output Transmission Type	/	Gear Transmission
Main Clutch Type	/	Friction‑plate Friction
Main Clutch Status (Normally‑open / Normally‑closed)	/	Normally‑open
Rated Power	kW	4.0
Rated Speed	r/min	3600
Operating Voltage	V	/
Battery Type	/	/
Battery Capacity	Ah	/
Supporting Hoeing Device Type	/	Hoeing Wheel
Max Working Width of Supporting Hoeing Device	mm	700
Supporting Ditching Device Type	/	Ditching Blade
Max Working Width of Supporting Ditching Device	mm	140
Supporting Hilling Device Type	/	Hilling Blade
Max Working Width of Supporting Hilling Device	mm	600
Supporting Ridging Device Type	/	Rotary Blade + Former
Ridge Quantity of Supporting Ridging Device	Ridge	1
Max Ridging Height of Supporting Ridging Device	mm	220
Fertilizer Discharger Type of Supporting Fertilizing Device	/	Fertilizer Applicator
Fertilizing Rows of Supporting Fertilizing Device	Row	2
Fertilizing Ditcher Type of Supporting Fertilizing Device	/	Plow‑blade Type
